Smart TS101 mini soldering iron kit quickly heats up to 65W

Smart TS101 mini soldering iron kit quickly heats up to 65W

• Miniware TS101 Programmable Portable Digital Soldering Iron with B2 Soldering Tip

  Color: Black/Gray

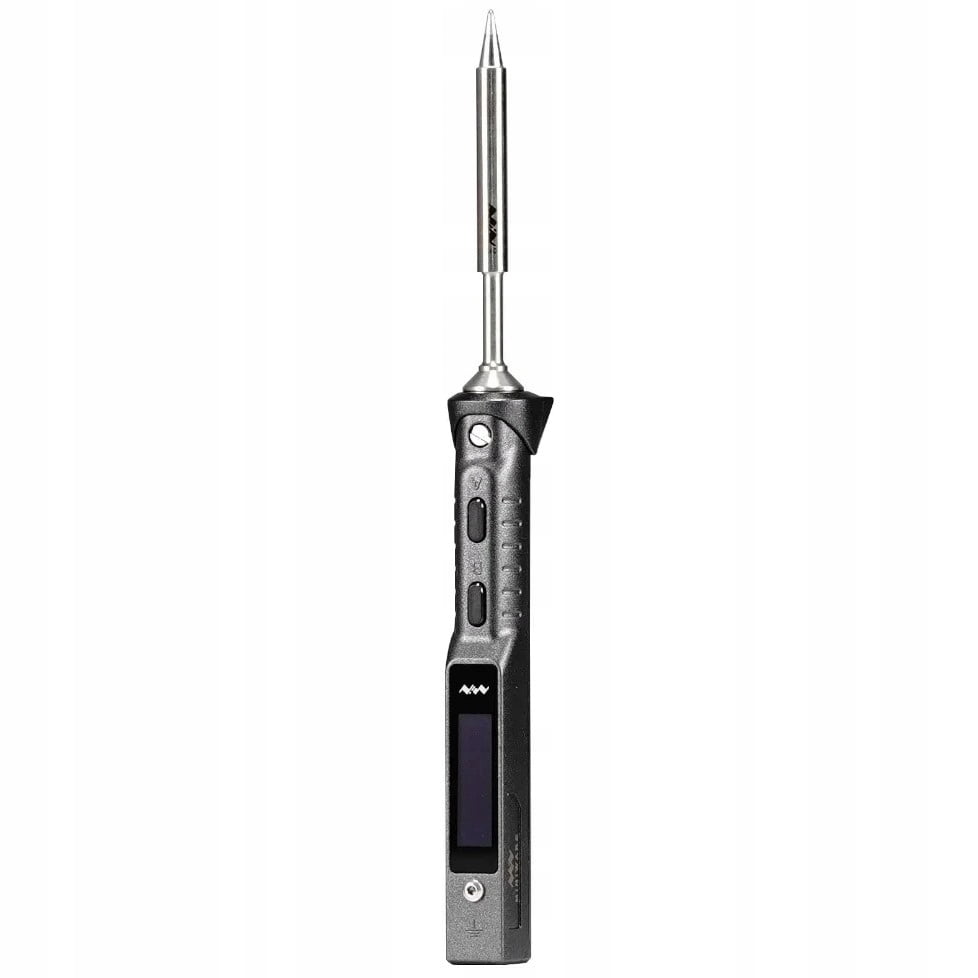

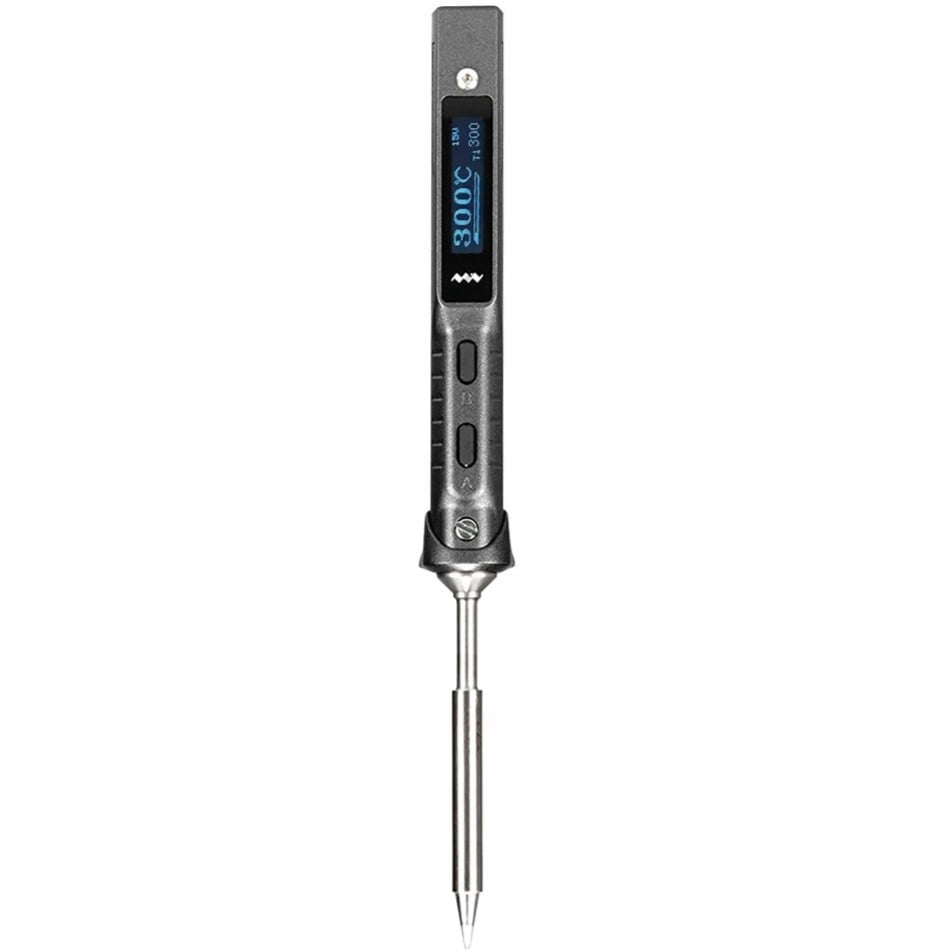

  Portable digital soldering iron (crank) with integrated OLED display.

  It has an adjustable operating temperature from 50°C to 400°C and several features such as automatic sleep, shutdown and intelligent compensation system, which ensure good temperature control and intuitive operation of the device.

  The power of the device depends on the power supply used and ranges from 65W to 90W.

  The soldering iron is suitable for right-handed and left-handed people.

  The soldering iron can be used with professional soldering tips and is also compatible with TS100 soldering tips.

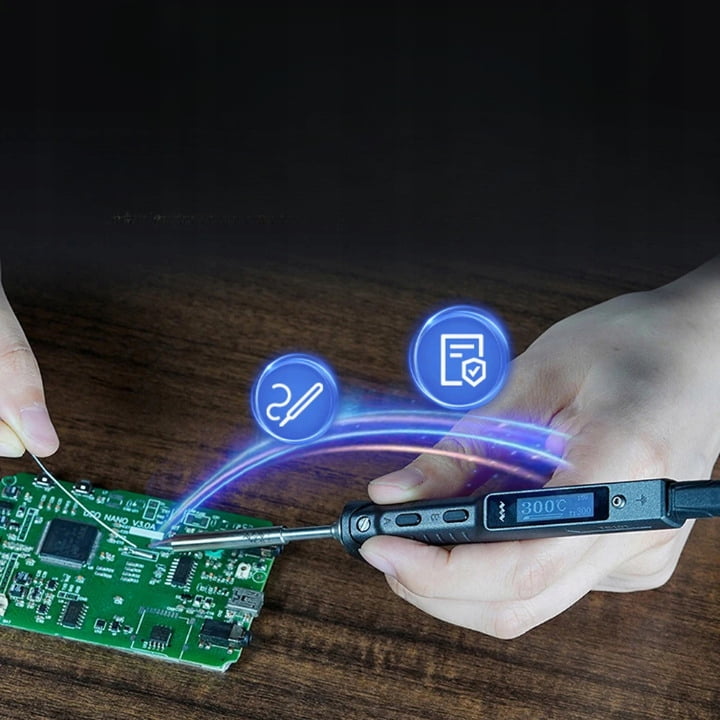

  Also perfect for work outside the workshop.

• Ease of use

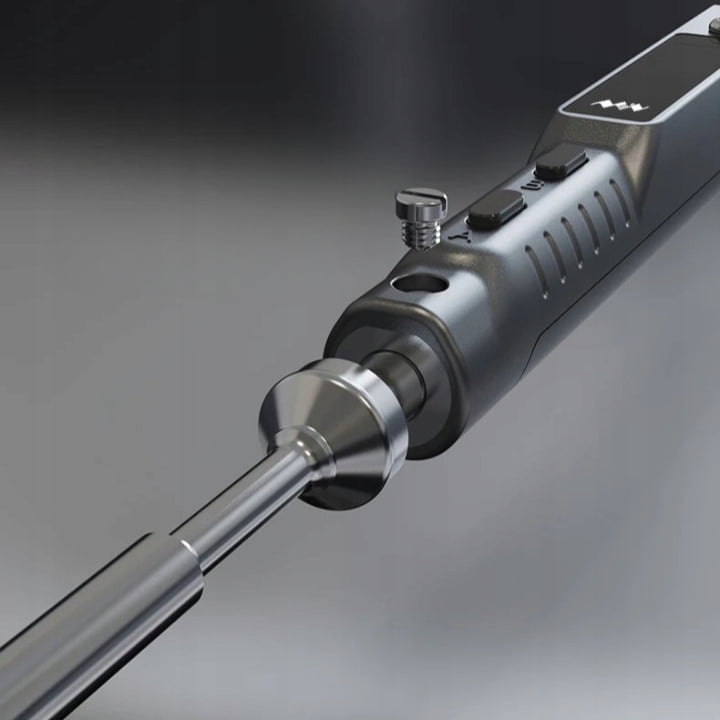

  The blade mounting system ensures stable operation and easy replacement.

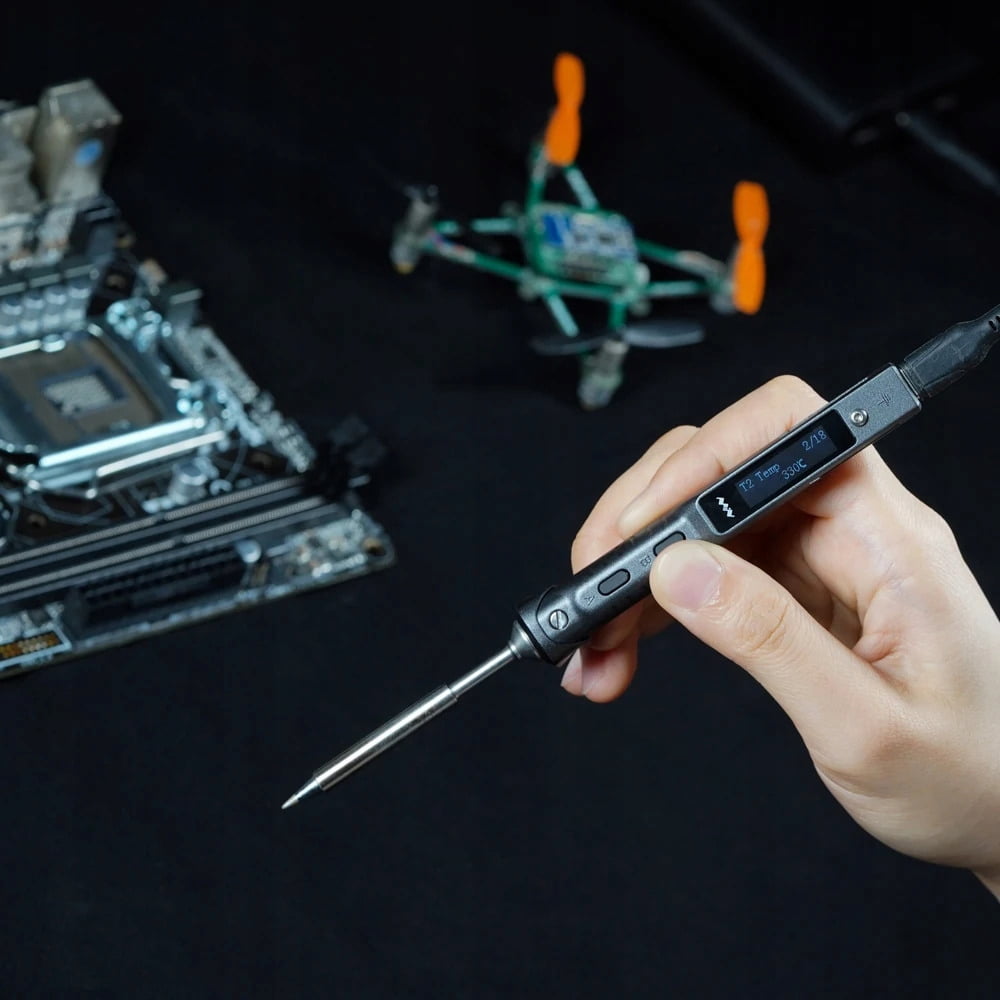

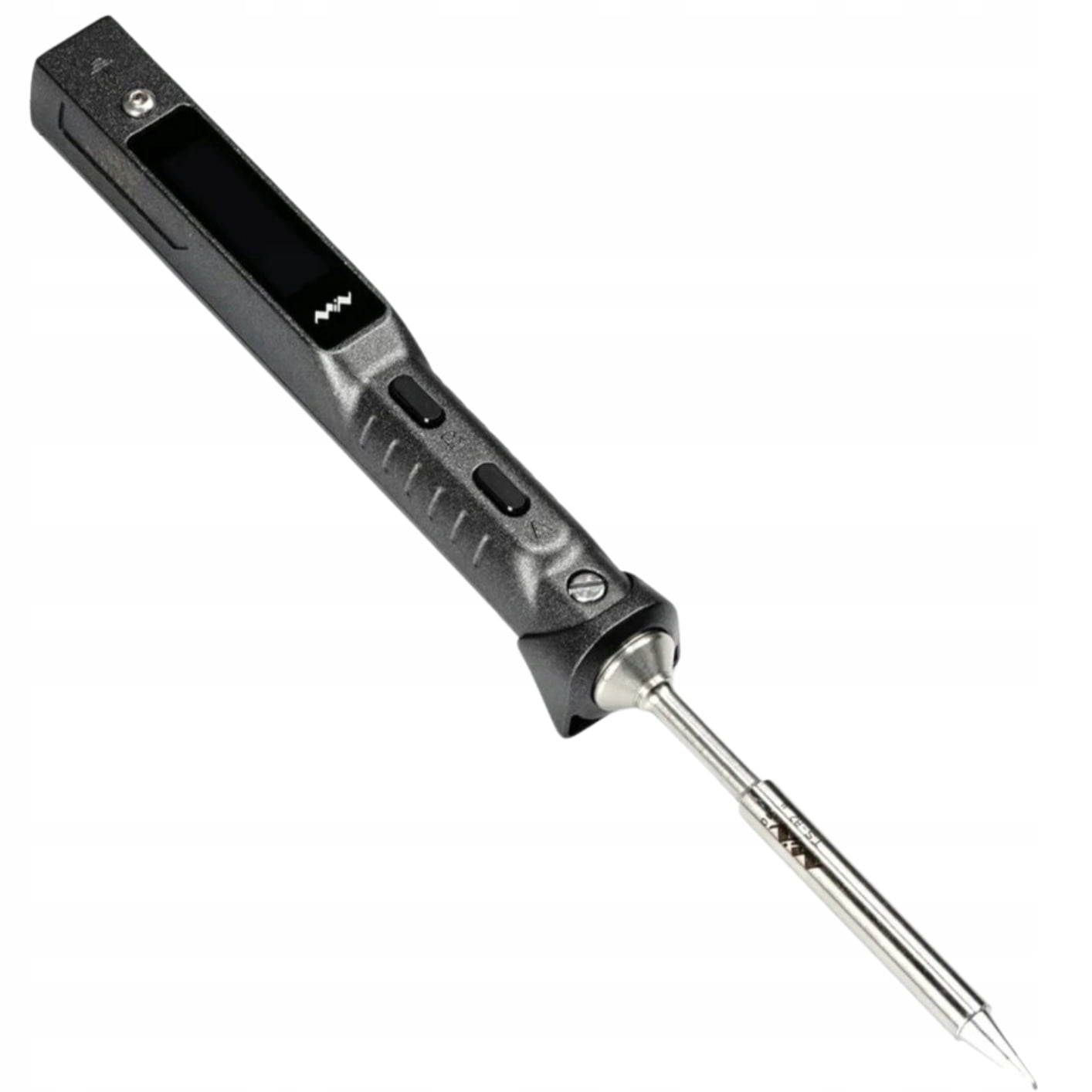

  The soldering iron has an ergonomic shape that is comfortable for both right-handed and left-handed people. The non-slip cover provides a firm grip and prevents the soldering iron from accidentally slipping out of your hand while soldering.

  Easy to assemble and disassemble, compact, and takes up no space when unfolded, making it easier to carry and transport.

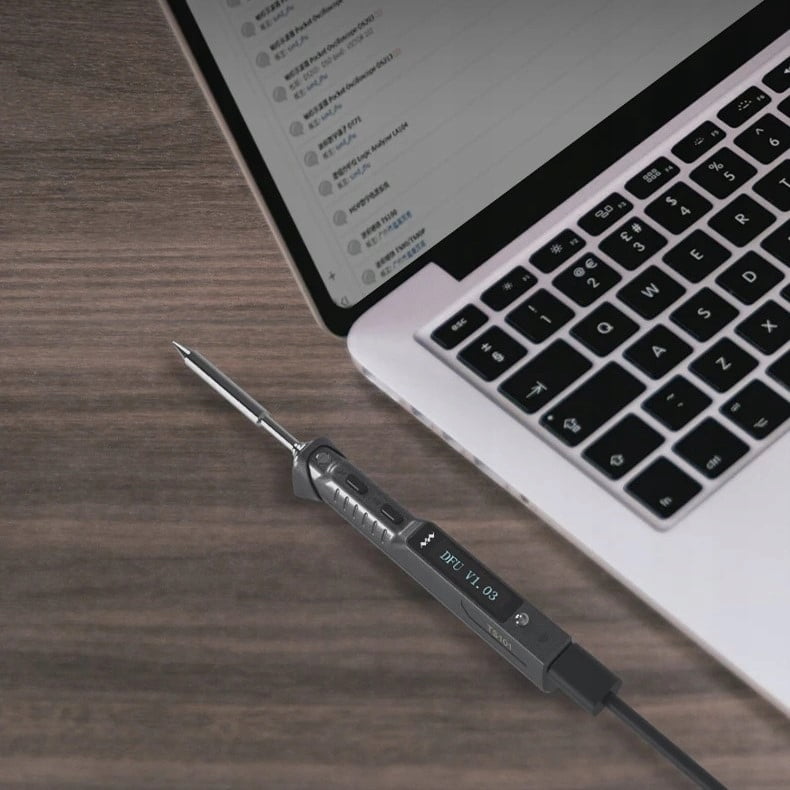

  The soldering iron can be connected to a computer, and its software can be updated (using the DFU function), so users always have access to the latest features.

• Soldering Iron Power Supply

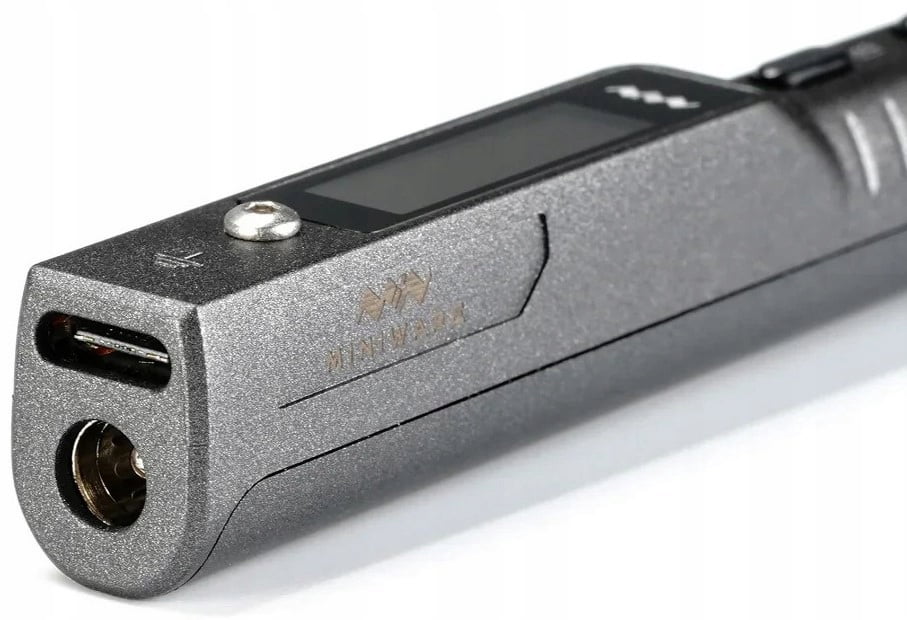

  The device can be powered in two ways:

  Through the USB Type-C port, which allows 9 V to 28 V power and up to 90 W of power (using the power supply standard)

  Through the DC connector – allows 9V to 24V power supply and up to 65W of power

  Also, the soldering iron can be powered by a 4S/5S lithium battery or a mobile power bank. This option also makes it suitable for work outside the workshop.

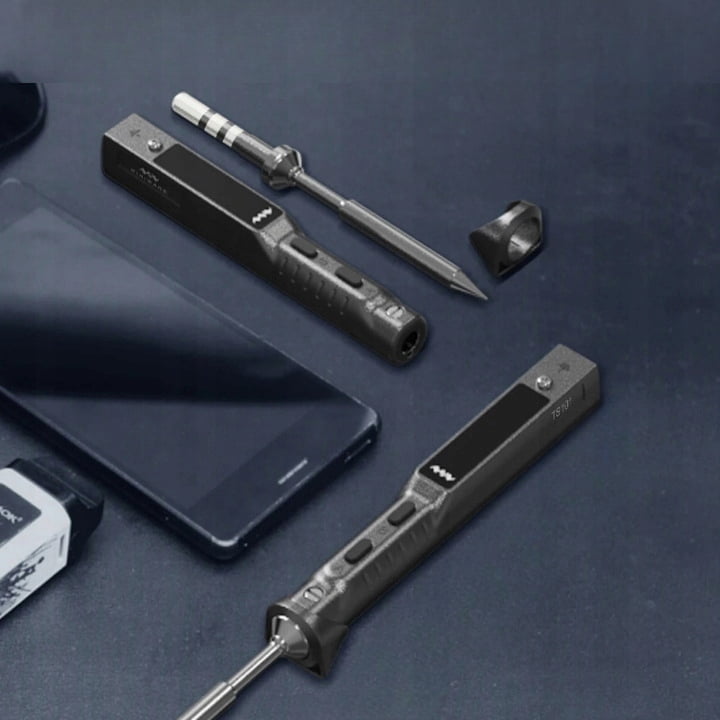

  Compact size

  The soldering iron is easy to disassemble and assemble, and takes up little space when disassembled, making it easy to store and transport.

• OLED display

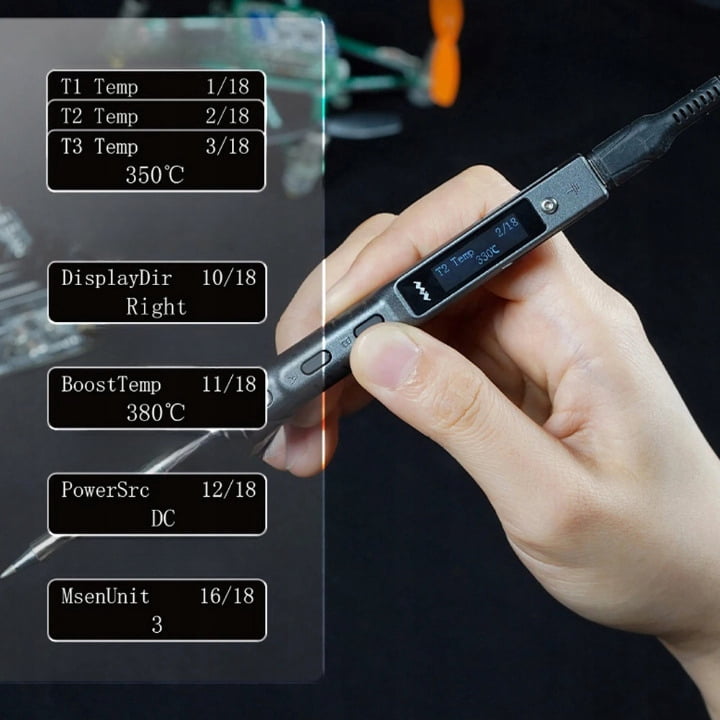

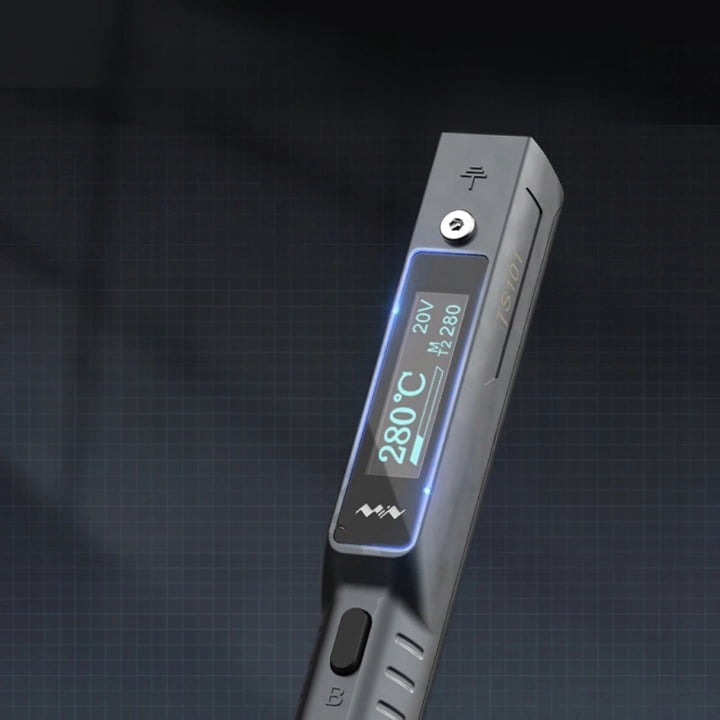

  The TS101 model is equipped with an OLED display with a resolution of 128x32, which displays the current operating parameters:

  Target temperature

  Supply voltage

  Operating temperature

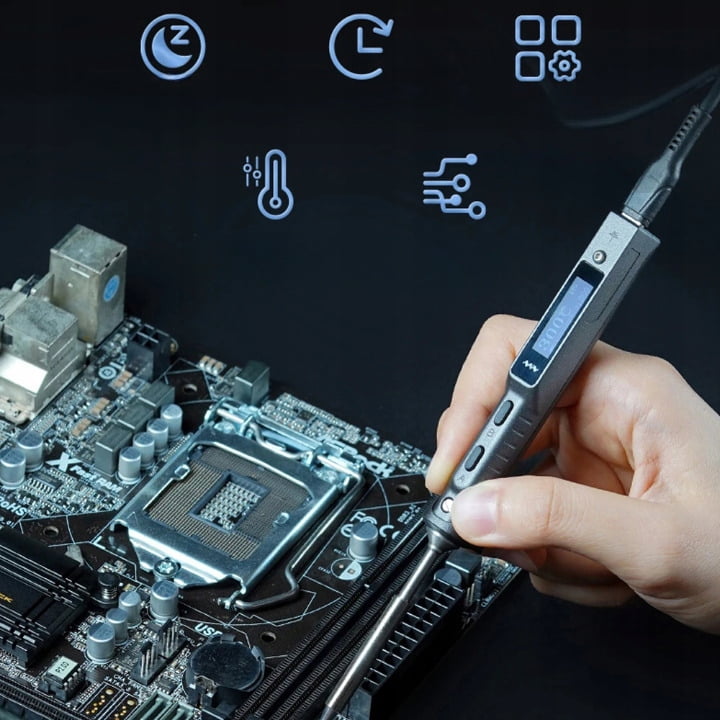

  Additional functions

  The soldering iron allows you to define the three most commonly used temperatures.

  It is also equipped with a boost mode that allows you to temporarily increase the soldering temperature (activated by pressing a button).

  The automatic overheating warning system ensures safety and protects the system from damage.

• Soldering Iron Specifications:

  Model: TS101
  DC Supply Voltage: 9V to 24V (65W Max)
  USB-C Supply Voltage: 9V to 28V (90W Max)
  Temperature Range: 50-400℃
  Sleep Temperature: 200℃
  Temperature Stability: +/-2%
  Power Delivery Support: 3.1
  DC Connector: 5.5 x 2.5 (mm)
  Tip Resistance: < 2 Ω
  Interface: USB Type-C (Powered and Updated by Computer)
  Display Type: OLED
  Controller Size: 98 x 16.5 (mm)
  Tip Size: 105 x 15.5 (mm)
  Weight: 33g
  Color: Black/Gray

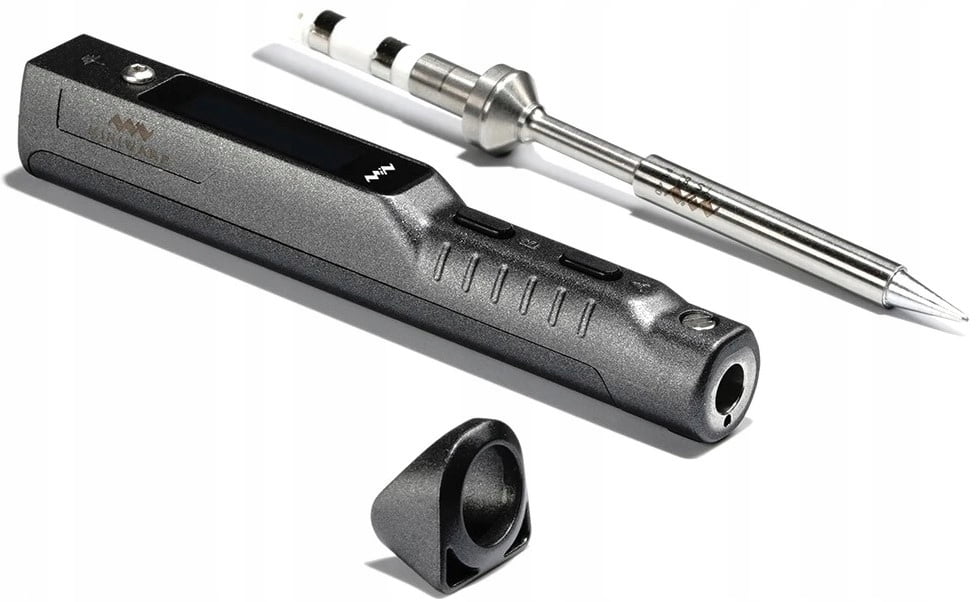

• The set includes:

  1x Miniware TS101 Soldering Iron
  1x TS-B2 Tip
  1x USB-C Cable

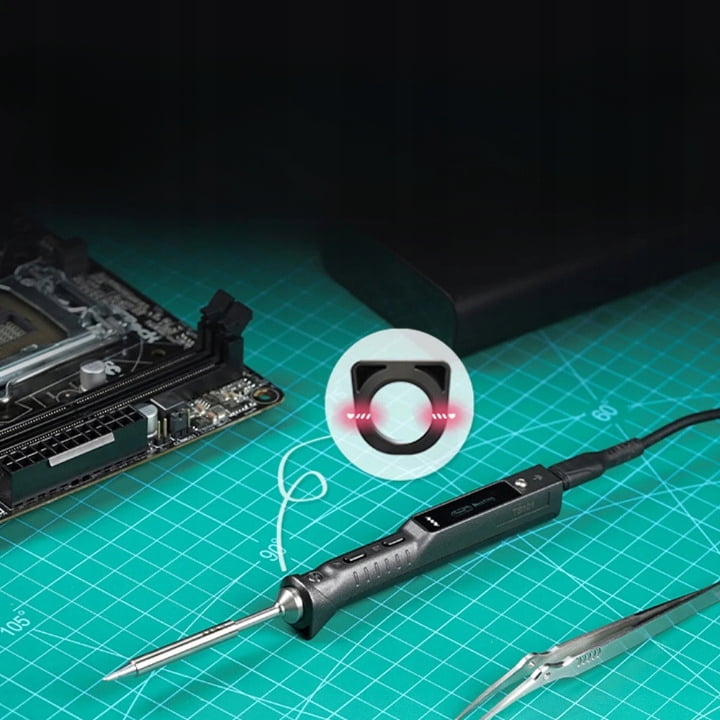

  1x Anti-Slip Pad
