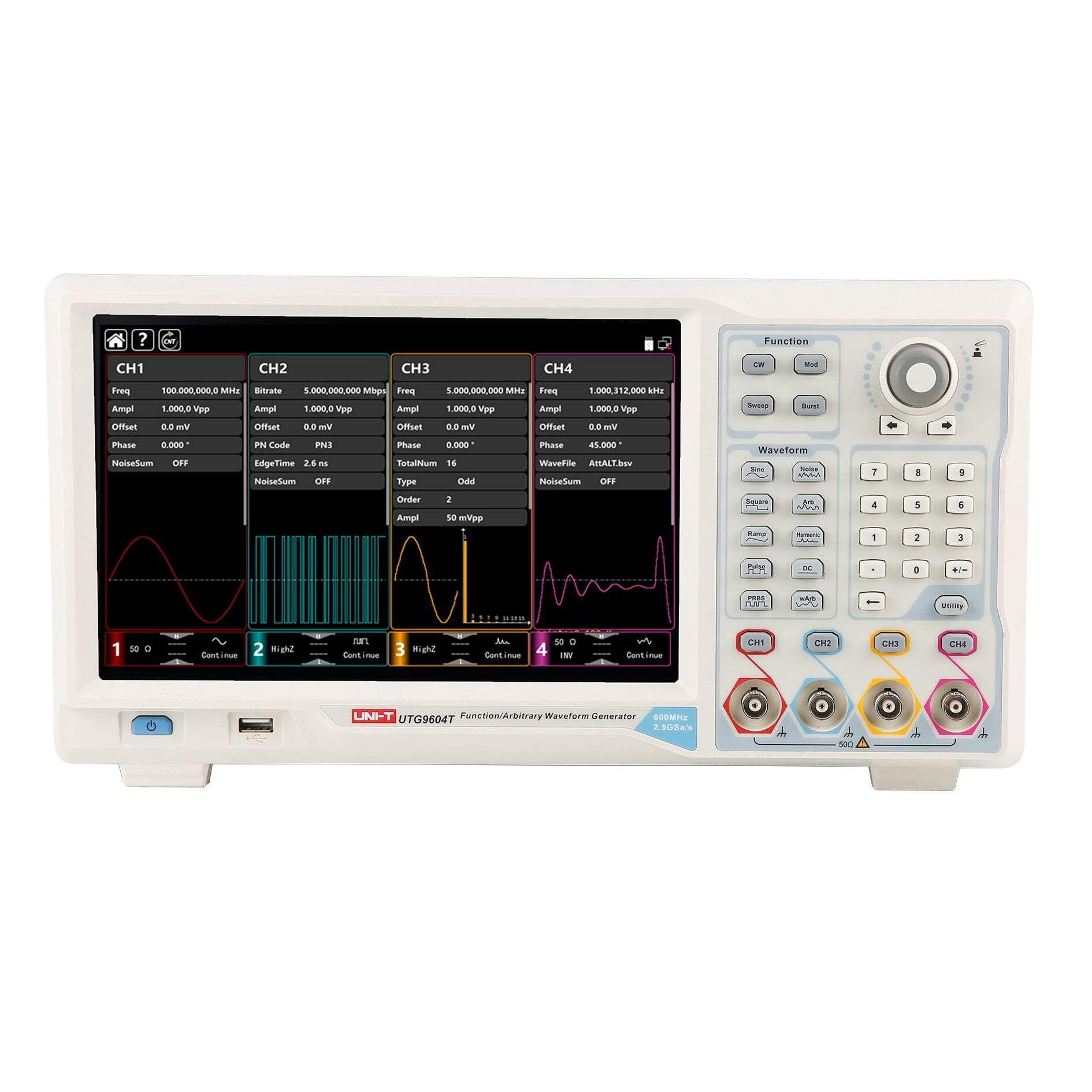

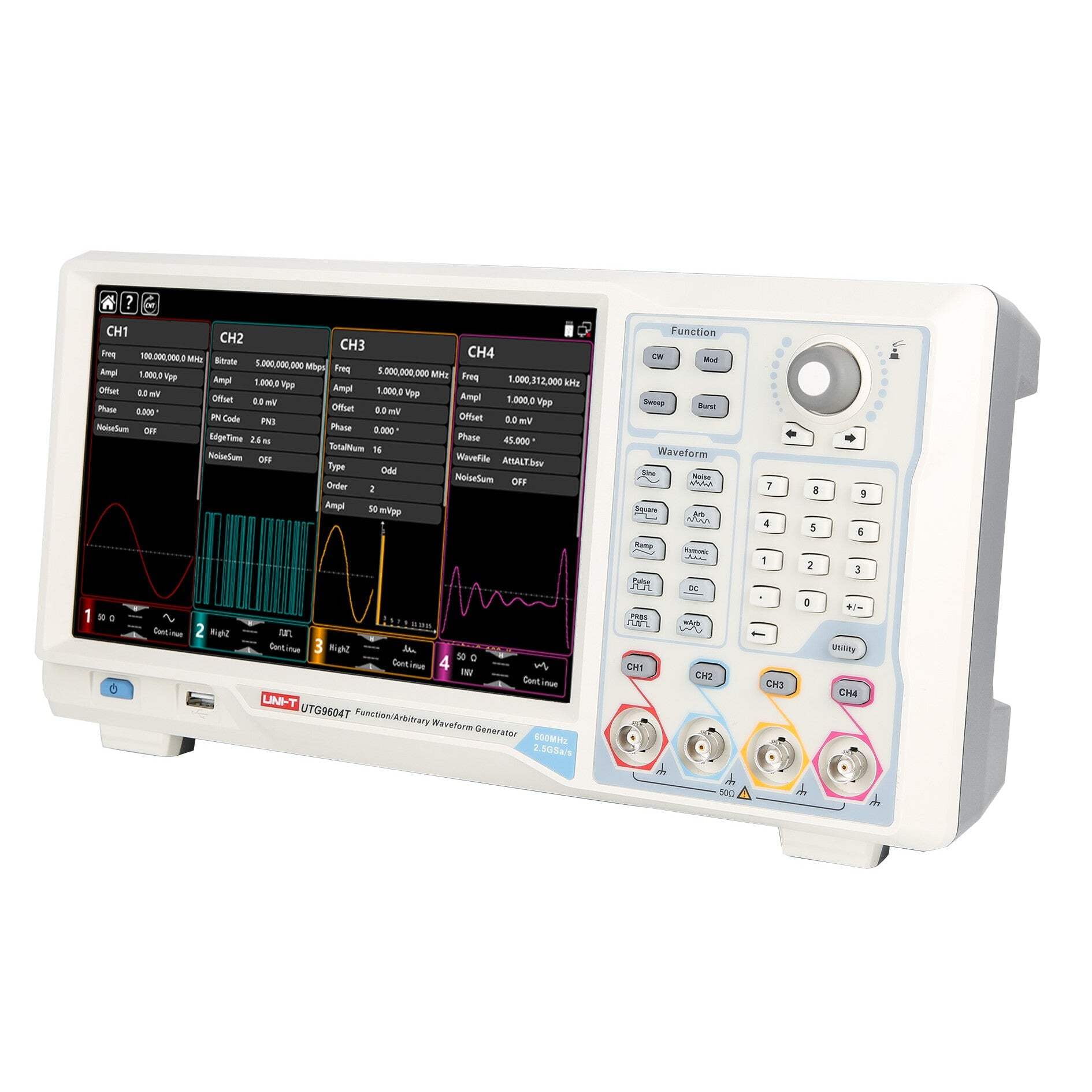

UNI-T UTG9604T 600MHz 4Ch Elite-Series Arbitrary Waveform Generator

<span>Transform your testing encounters with the UNI-T UTG9604T Waveform Generator</span>UNI-T UTG9604T Arbitrary Wave<p><span>Featuring an array of advanced functionalities, the UNI-T UTG9604T Elite-Series Arbitrary Waveform Generator is your gateway to precision, versatility, and unparalleled performance. Step up your testing capabilities with the UTG9604T waveform generator, a genuine game-changer for your engineering pursuits. </span></p>UNI-T UTG9504T Key Specifications:<ul><li><strong>Maximum Frequency:</strong> 600MHz</li><li><strong>Channel: </strong>4</li><li><strong>Arbitrary Wavelength:</strong><span> </span>64Mpts</li><li><strong>Maximum Sampling Rate:</strong> 2.5GSa/s</li><li><strong>Vertical Resolution:</strong> 16bits</li><li><strong>Minimum Edge Time:</strong> within 1.5ns, adjustable duty ratio</li><li><strong>Maximum Output Swing:</strong> 20Vpp</li><li><strong>Digital Protocol Output:</strong> SPI, I2C, UART</li><li><strong>Screen Display:</strong> 10.1-inch capacitive touch screen, 1280*800 resolution</li></ul><br>UNI-T UTG9604T Top Features:<ul><ul><ul><li><strong>Direct Digital Synthesis (DDS) Function:</strong> <span>This device incorporates the Direct Digital Synthesis (DDS) function, providing a high-precision, stable, pure, and low-distortion signal. Additionally, it excels in generating high-frequency waves with rapid rising and falling edges. As a high-performance, multifunction four-channel arbitrary function generator, it boasts a user-friendly touch screen, superior technical specifications, and a graph display designed for enhanced work performance. This versatile product is designed to meet both current and future testing requirements, offering a multitude of capabilities to support various applications.</span></li></ul></ul></ul>UNI-T UTG9000T Frequency Meter<ul><ul><ul><li><strong>Digital Protocol Output:</strong> <span>Equipped with three standard serial protocols–<strong>SPI, I2C, and UART</strong>–UTG9604T allows users to compile corresponding parameters and generate serial signal waveforms for each protocol. This functionality serves to test and verify protocol interfaces, providing input signals for interface assessment. This feature enhances the specificity and effectiveness of interface measurements during operations.</span></li><li><strong>Frequency Meter:</strong> <span>Incorporated within is a built-in frequency meter, simplifying the process of testing frequency signals. To perform the test, connect the signal to the "counter" on the rear panel, and the result will be readily obtained.</span></li><li><strong>Channel Merging:</strong> UTG9604T <span> offers the capability to combine CH1 with CH2 and CH3 with CH4, providing exceptional real-time and true superposition features to display complex waveforms effectively.</span></li><li><strong>Four-Channel Sync Display:</strong> This model <span>comprises <strong>four channels</strong>, with CH1 and CH2 designated as the primary channels, while CH3 and CH4 belong to the secondary channels. Users have the flexibility to switch and view signal parameters for all four channels simultaneously on a single screen, simplifying operation and facilitating the recording of parameters.</span></li></ul></ul></ul>UNI-T UTG9000T Channel Merging<ul><ul><ul><li><strong>Multiple Modulation Mode:</strong> <span>It provides support for various analog and digital modulation techniques, including AM, FM, PM, DSBAM, QAM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, PWM, and SUM. The device offers both internal and external modulating signal sources, offering a diverse range of modulation signals to cater to waveform generation requirements spanning radio, TV, and mobile networks.</span></li><li><strong>Channel Coupling:</strong> <span>CH1 couples with CH2, and CH3 couples with CH4 through a channel coupling function. Activate this function when another channel requires the same or related signal waveform. UTG9604T offers three coupling modes t</span></li></ul></ul></ul>
